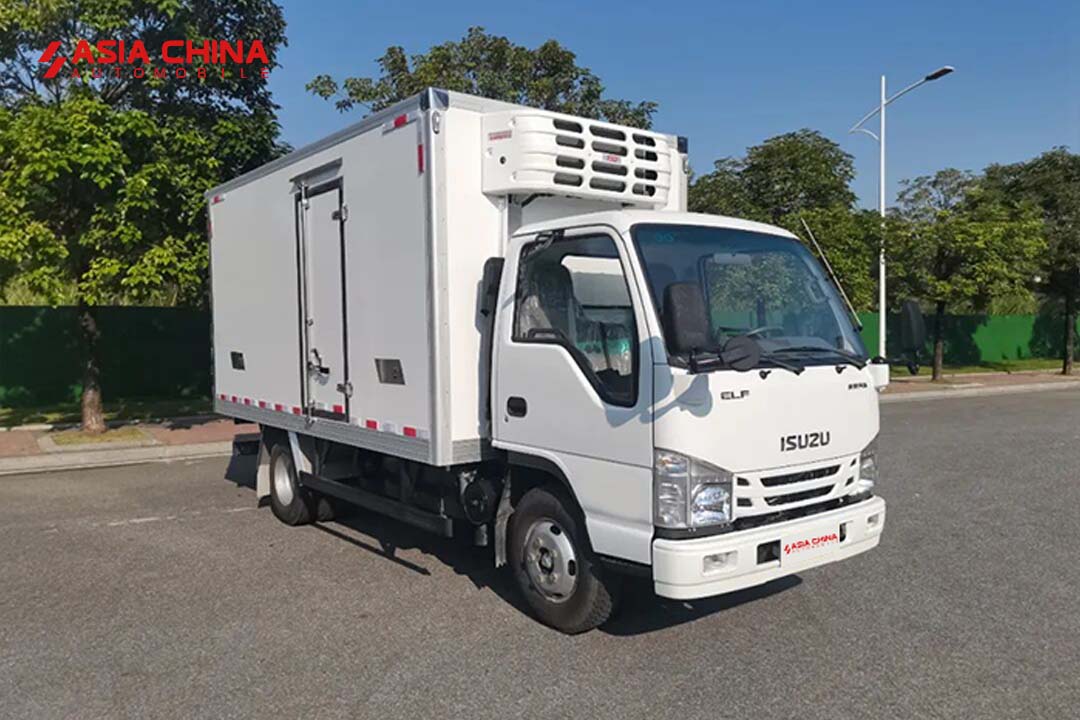

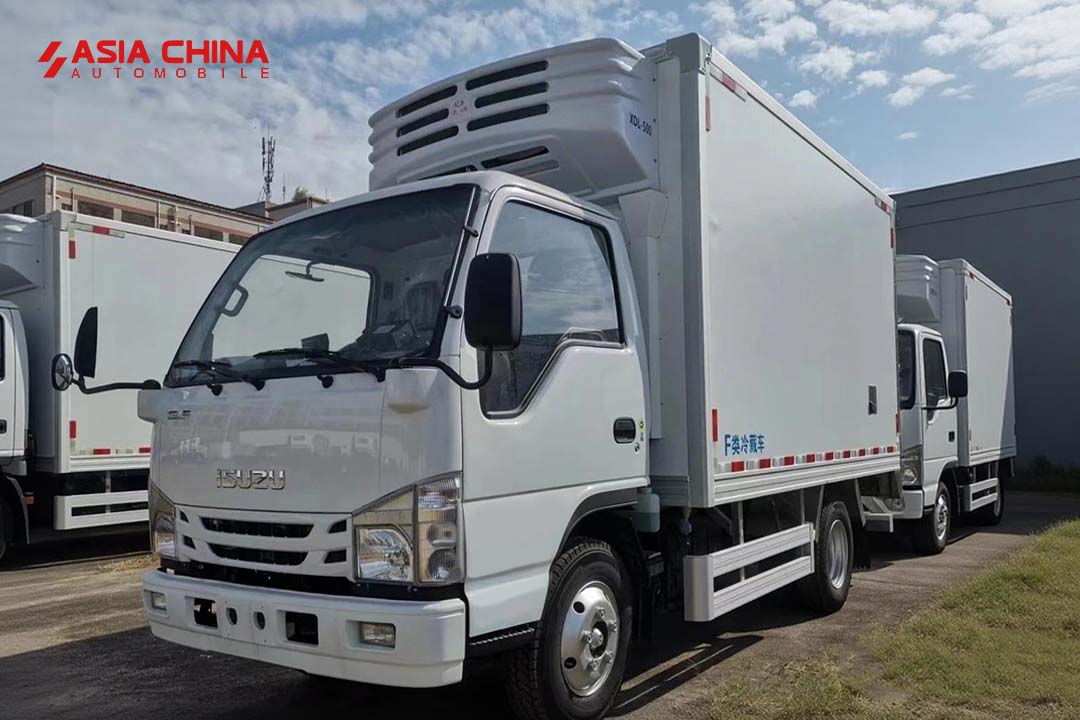

Fresh meat transport requires specialized equipment. The Qingling Isuzu 100P refrigerated truck is designed specifically for this demanding task. Its combination of a reliable chassis and high-quality refrigerated body ensures product integrity throughout the delivery process.
The vehicle is built on a proven platform with a gross weight rating of 4,495 kg. It weighs 3,210 kg unladen, leaving 1,155 kg of payload capacity. Power comes from the Isuzu 4KB1-TCG60 engine, a 2.5-liter diesel unit producing 96 kW (130 horsepower). Standard equipment includes air conditioning, power steering, and ABS. The cabin accommodates two persons. Six 7.00R16LT 8PR tires provide stable road contact.

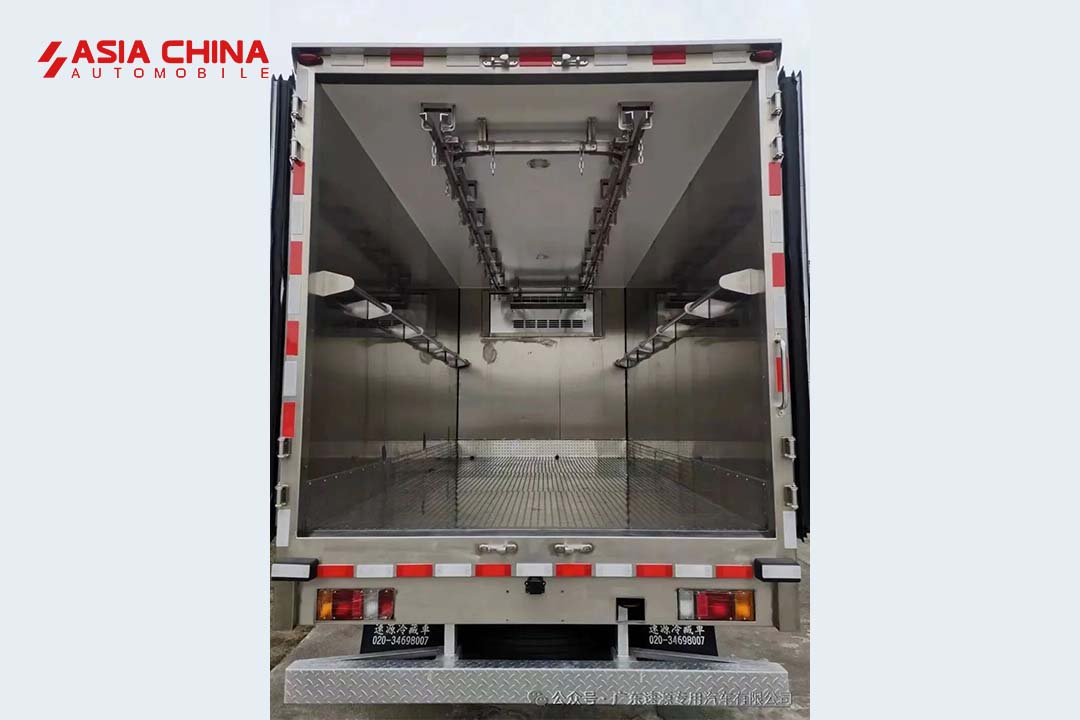

Two body types are available for different operational needs. The meat rail body features integrated overhead rails that connect directly with slaughterhouse systems. The standard refrigerated body suits general cold chain applications. Both configurations achieve temperatures as low as -18 degrees Celsius.

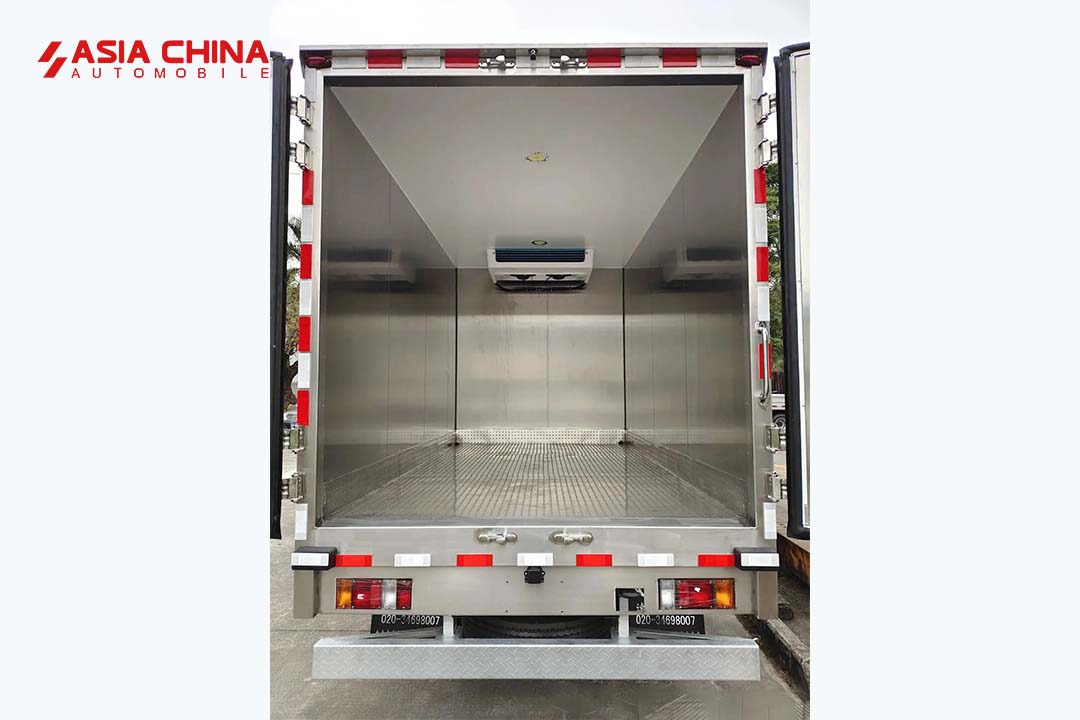

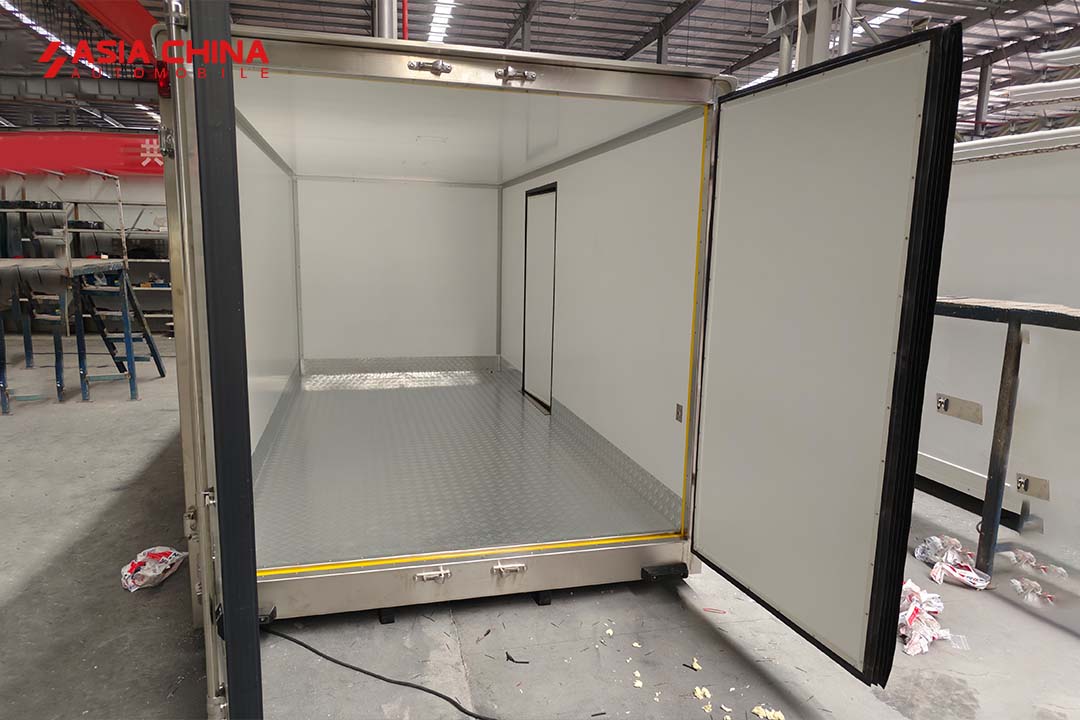

The body interior is fabricated from stainless steel with fully welded seams. This eliminates the use of sealants that can degrade over time. Embedded reinforcement ribs and strengthened subframes enhance structural integrity. High-pressure polyurethane foam insulation achieves a density of 45 kg per cubic meter. The total heat transfer coefficient measures below 0.02 W per square meter per Kelvin, meeting international standards. Total heat leakage remains under 16 W per Kelvin.

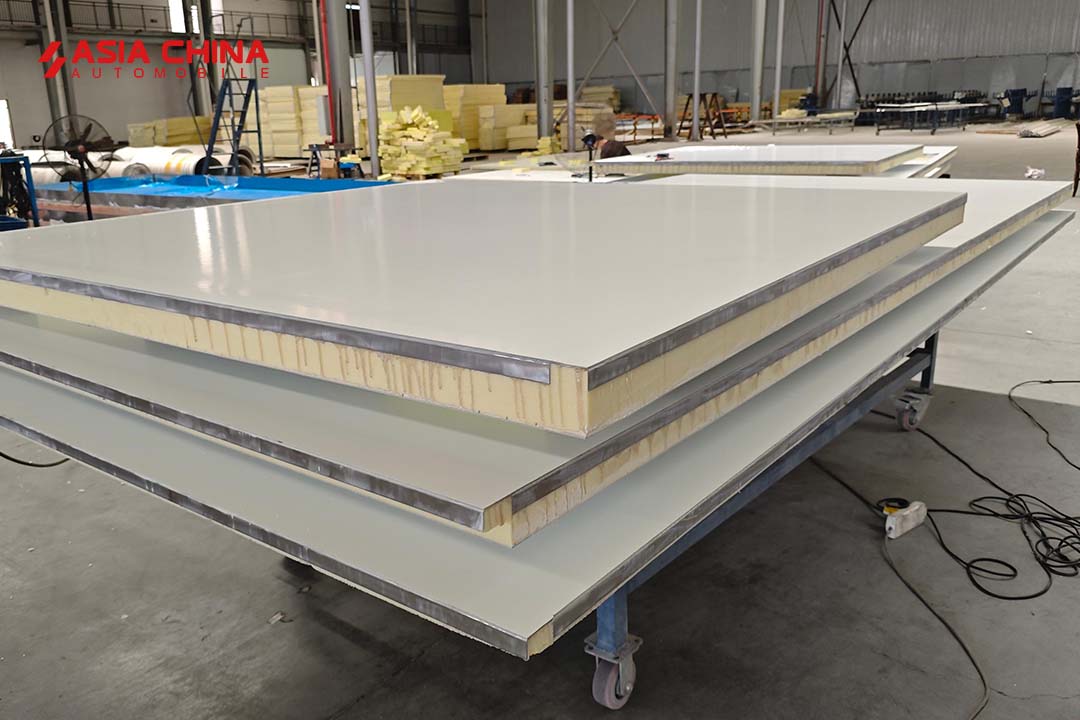

The body panels are constructed using nano-grade fiberglass-reinforced plastic with 8 cm thickness. Aluminum alloy profiles secure the edges. Stainless steel 304 door frames, hinges, and locks provide corrosion resistance. LED interior lighting and clearance lights are standard. This lightweight construction increases payload capacity and improves fuel efficiency.
The high-density insulation delivers excellent temperature retention. The lightweight yet strong body maintains integrity even in extreme conditions. A low center of gravity enhances vehicle stability. The materials are non-toxic and odor-free, ensuring food safety. Corrosion resistance extends service life. The seamless welding technology used on stainless steel interiors prevents water ingress and eliminates sealant aging issues.
The Qingling Isuzu 100P refrigerated truck offers a complete solution for fresh meat logistics. Its durable construction and efficient insulation keep products at safe temperatures while maximizing payload and minimizing operating costs.
