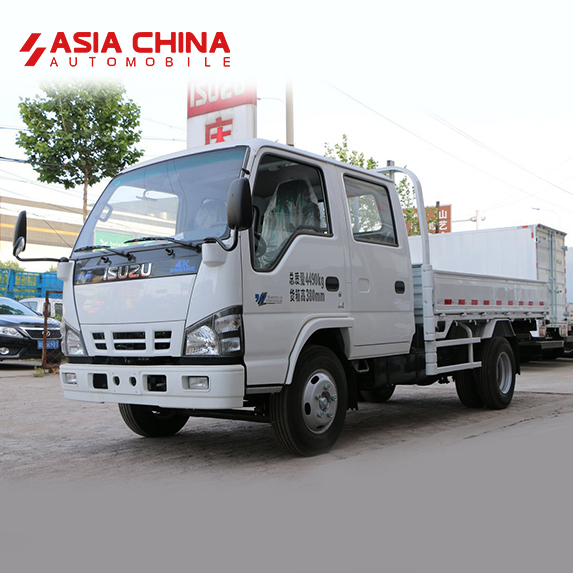

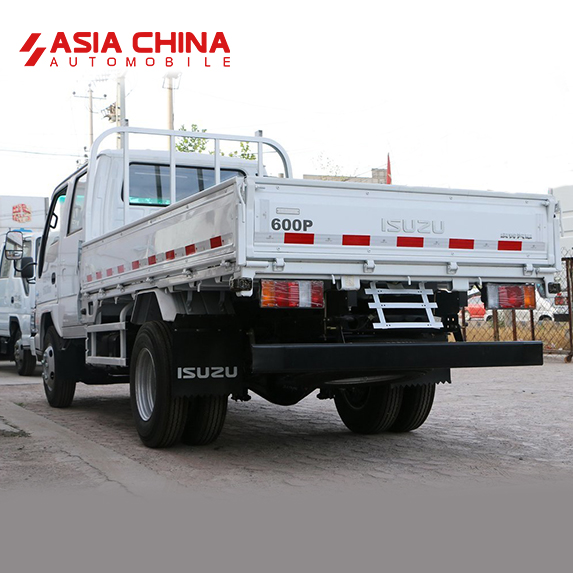

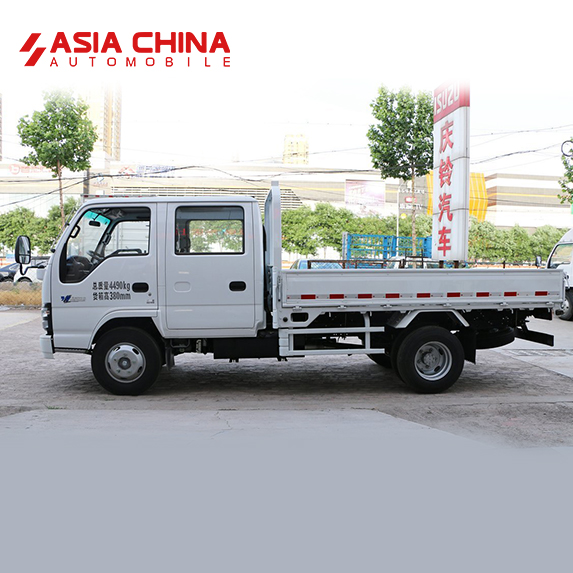

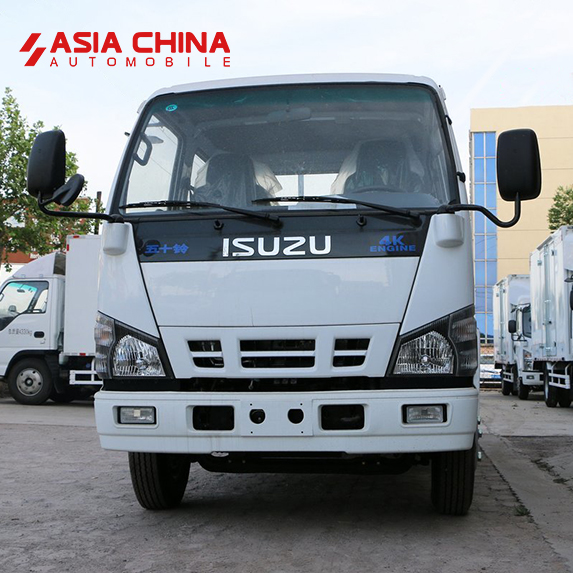

| Qingling Isuzu 600P Dropside Truck | |||||||
| NO. | SPECIFICATION | PARAMETER | |||||
| 4×2 | |||||||
| 1 | Vehicle Model | QL1070BUHW | QL1070BUKA | QL1070BUKW | |||
| 2 | GVW(kg) | 7010 | 7050 | 7010 | |||
| 3 | Curb Weight(kg) | 2685 | 2720 | 2825 | |||
| 4 | Axle Loads(kg) | 2300/4710 | 2500/4550 | 2300/4710 | |||
| 5 | Cabin | 2+3 | 2 | 2+3 | |||
| 6 | Overall Dimension(mm) | 5950×1880×2300 | 6745×1880,2090×2300 | 6745×1880×2300 | |||
| 7 | Wheelbase(mm) | 3360 | 3815 | 3815 | |||
| 8 | Engine | 4KH1CN6LB | 4KH1N6MD | 4KH1CN6LB | 4KH1N6MD | 4KH1CN6LB | 4KH1N6MD |
| 9 | Engine Output (kW(PS)) | (88kW)120PS | (103kW)140PS | (88kW)120PS | (103kW)140PS | (88kW)120PS | (103kW)140PS |
| 10 | Displacement(L) | 2.999 | |||||
| 11 | Emission Standard | Euro 6 | |||||
| 12 | Braking Mode | Air Brake / Oil Brake | Air Brake | Air Brake / Oil Brake | Air Brake | Air Brake / Oil Brake | Air Brake |
| 13 | Max Speed(km/h) | 95 | |||||
| 14 | Front/Rear Overhang(mm) | 1015/1575 | 1015/1915 | 1015/1915 | |||
| 15 | Tire Model | 7.00R16LT 14PR,7.00-16LT 14PR | |||||
*More parameters can be customised, please contact us for more information.
