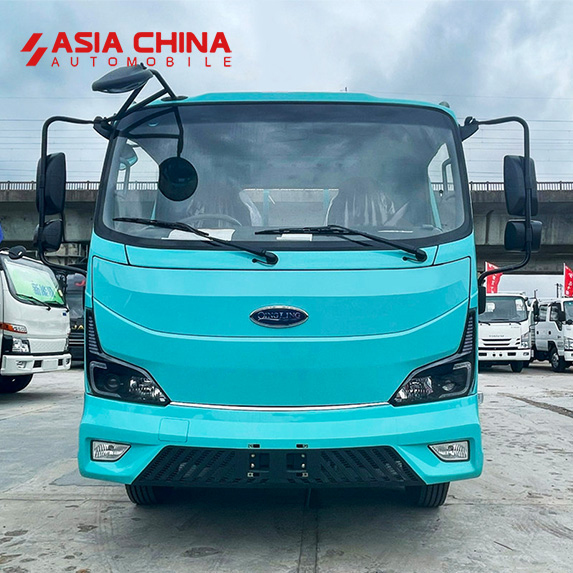

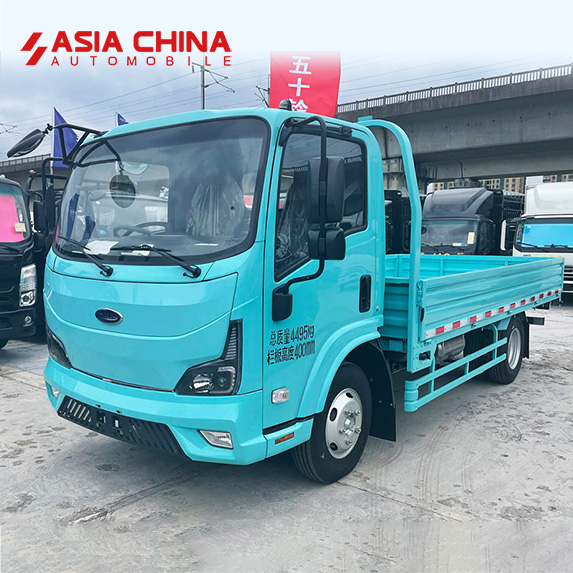

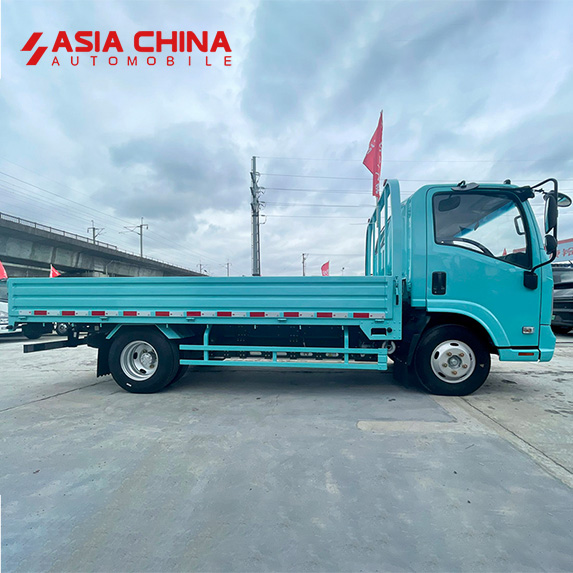

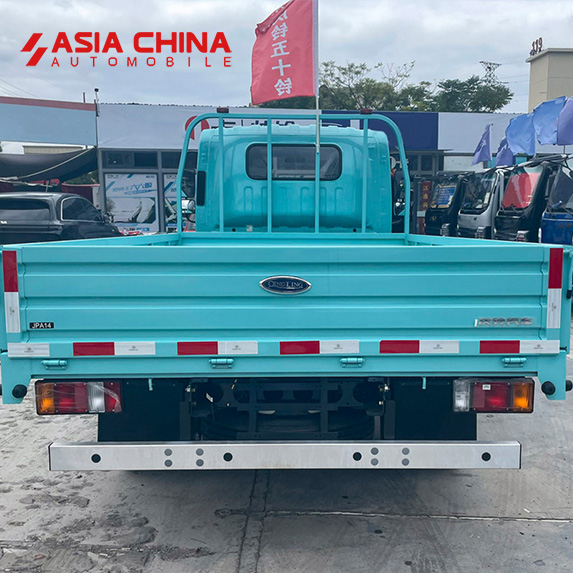

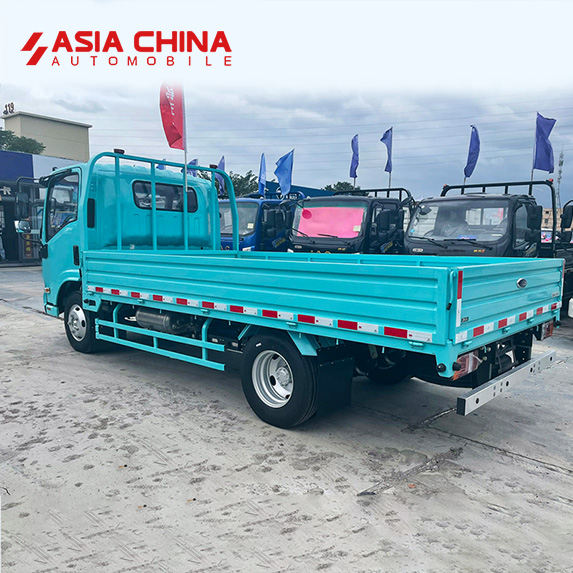

| Qingling Isuzu EQ2 Right-Hand Drive Electric Dropside Truck | ||
| NO. | SPECIFICATION | PARAMETER |
| 4×2 | ||
| 1 | GVW(kg) | 4495 / 7300 |
| 2 | Seating Capacity | 3 |
| 3 | Wheelbase(mm) | 3360 / 3815 |
| 4 | Front / Rear Track (mm) | 1640/1525 |
| 5 | Overall Dimensions (mm) | 5995×2050, 2100,2150×2390, 2410,2630,3040 (Wind Deflector) |
| 6 | Front Overhang (mm) | 1145 |
| 7 | Rear Overhang (mm) | 1490 / 1870（3815） |
| 8 | Approach Angle (°) | 18 |
| 9 | Departure Angle (°) | 15 |
| 10 | Max sped (km/h) | 100 |
| 11 | Min-Turning Diameter (mm) | ≤ 13.6 / ≤ 15.2（3815） |
| 12 | Driving Range (km) | 510 / 610 |
| 13 | Drive Motor Brand | JEE/Bosch |
| 14 | Drive Motor Type | Permanent Magnet Synchronous Motor |
| 15 | Battery Capacity (kWh) | 100.46（1C） |
| 16 | Number of Leaf Spring Leaves |
3 / 3+2 |
| 17 | Tire | 6.50R16 10PR |
*More parameters can be customised, please contact us for more information.
