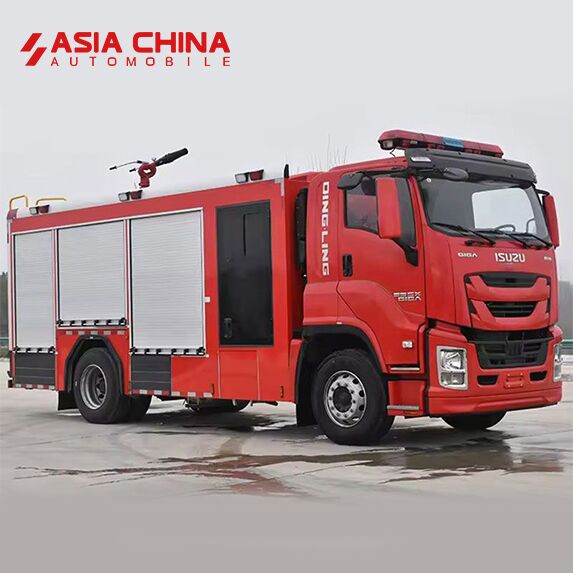

| Isuzu Fire Rescue Fighting Truck | |||||
| NO. | SPECIFICATION | PARAMETER | |||
| 4×2 | |||||
| 1 | Model Series | 100P | 600P | F | |
| 2 | Chassis Model | QL1071BUHWY | QL5220GXFFMFRY | ||
| 3 | GVW(kg) | 7300 | 22000 | ||
| 4 | Curb Weight(kg) | 2250 | 6350 | ||
| 5 | Capacity(m³) | 1.95-2 | 5.8-8.6 | ||
| 6 | Cabin | ISUZU cab, left-hand drive, with Air-conditioner | |||
| 7 | Overall Dimension(mm) | 5900×1880×2200 | 8010×2540×3060 | 8770×2540×3060 | |
| 8 | Wheelbase(mm) | 3360 | 4500 | 5550 | |
| 9 | Engine | 4KH1CN6LB | 4KH1N6MD | 6HK1-TCG60 | |
| 10 | Engine Output (kW(PS)) | (88kW)120PS | (103kW)140PS | （221kW)300PS | |
| 11 | Displacement(L) | 2.999 | 7.790 | ||
| 12 | Emission Standard | Euro 6 | Euro 6 | ||
| 13 | Braking Mode | Air Brake | Air Brake | ||
| 14 | Max Speed(km/h) | 90 | 95 | ||
| 15 | Front/Rear Overhang(mm) | 1015/1815 | 1370/2380 | ||
| 16 | Tire Model | 7.00R16LT 14PR | 385/65R22.5 20PR/315/80R22.5 20PR | ||
| 17 | Product Description | Durable Isuzu fire truck with water tank and pump, ideal for firefighting and rescue operations. Reliable, efficient, and ready for export. | |||
*More parameters can be customised, please contact us for more information.
