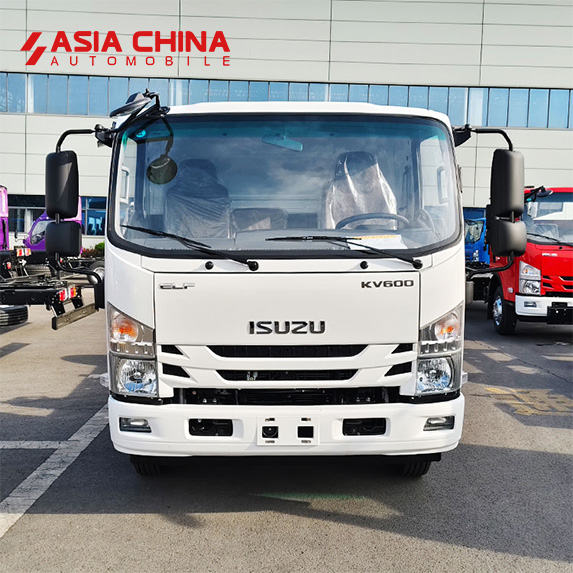

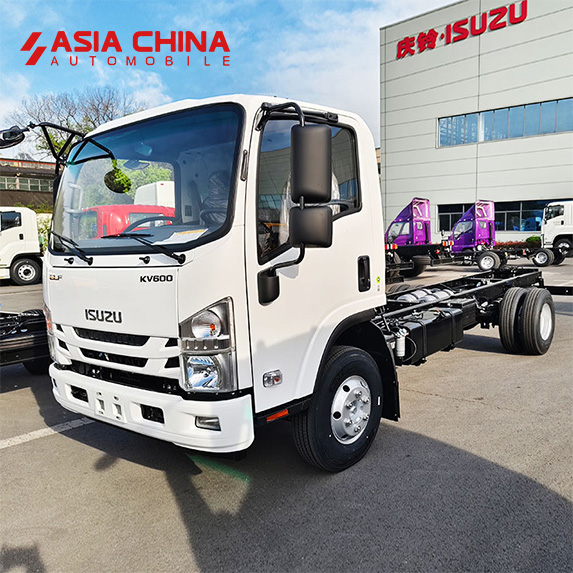

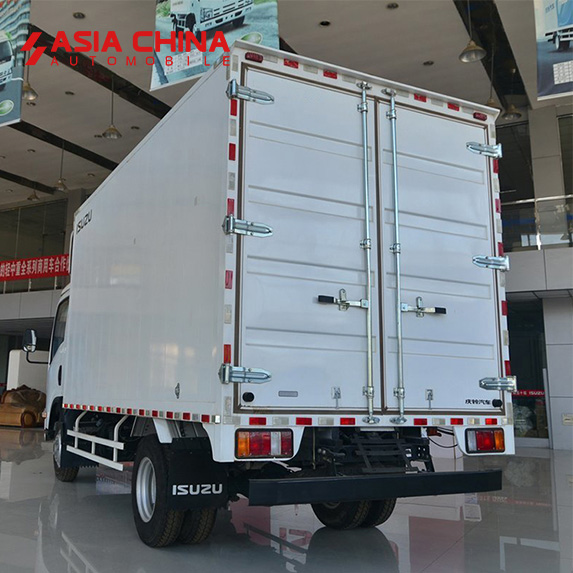

| Qingling Isuzu KV600 Cargo Truck | ||||
| NO. | SPECIFICATION | PARAMETER | ||
| 4×2 | ||||
| 1 | Vehicle Model | QL5043XXYMVHA | QL5080XXYBUHA | QL5080XXYBUKA |
| 2 | GVW(kg) | 4495 | 8280 | 8280 |
| 3 | Curb Weight(kg) | 2805 | 3540 | 3830 |
| 4 | Axle Loads(kg) | 1750/2745 | 3000/5280 | 3000/5280 |

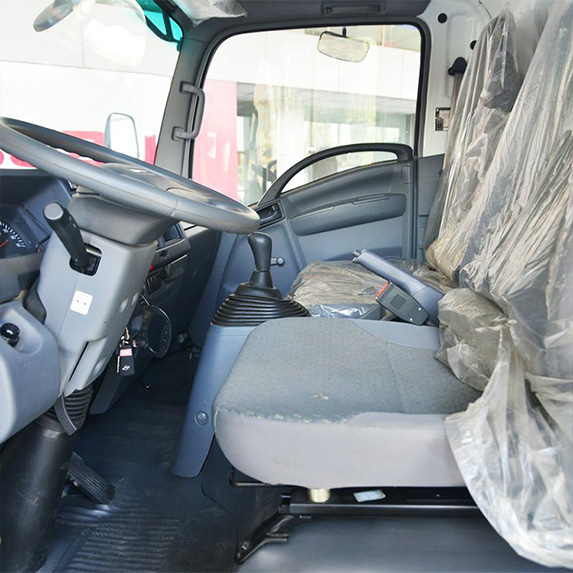

| 5 | Cabin | Isuzu cab, high-roof, left-hand drive, with Air-conditioner, 3 passengers | ||
| 6 | Overall Dimension(mm) | 5995×2180×3150,3300 | 5995×2360×3330 | 7025×2360×3330 |

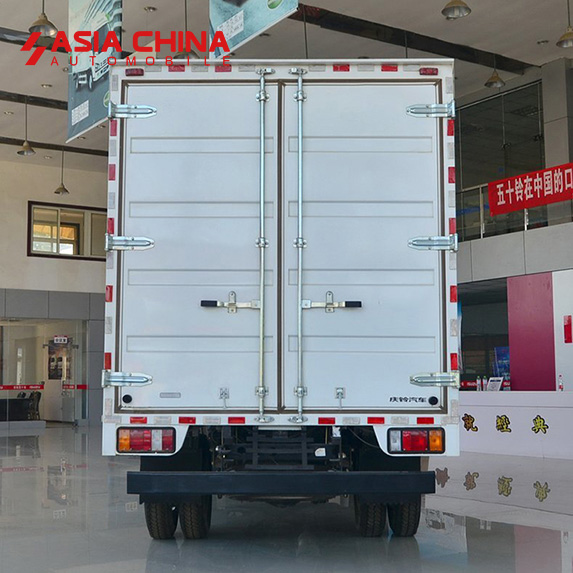

| 7 | Box Dimension(mm) | 4130,4150×2100×2150,2300 | 4130×2300×2300 | 5175×2300×2300 |
| 8 | Wheelbase(mm) | 3360, 3365 | 3365 | 3815 |
| 9 | Engine | 4KK1N6HD | 4KH1CN6HB | 4KH1CN6HB |
| 10 | Engine Output (kW(PS)) | (118kW)160PS | (97kW)132PS | (97kW)132PS |
| 11 | Displacement(L) | 2.499 | 2.999 | 2.999 |
| 12 | Emission Standard | Euro 6 | ||
| 13 | Braking Mode | Air Brake | ||
| 14 | Max Speed(km/h) | 115 | 105 | 105 |
| 15 | Front/Rear Overhang(mm) | 1110/1525,1120/1510 | 1120/1510 | 1120/2090 |
| 16 | Tire Model | 7.00R16LT 8PR | 7.50R16LT 14PR | 7.50R16LT 14PR |
*More parameters can be customised, please contact us for more information.
