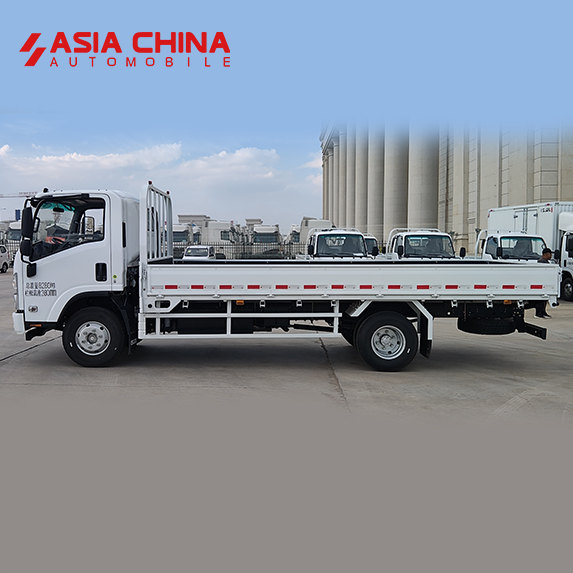

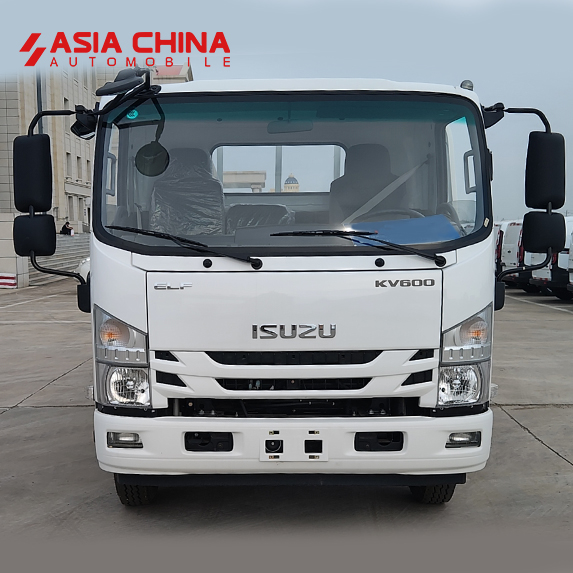

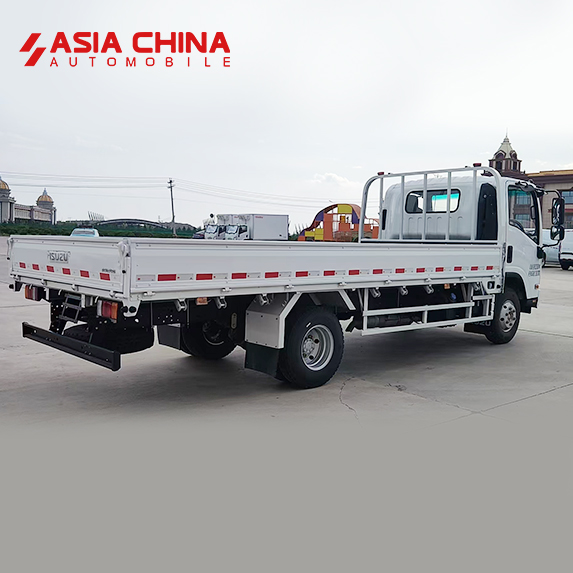

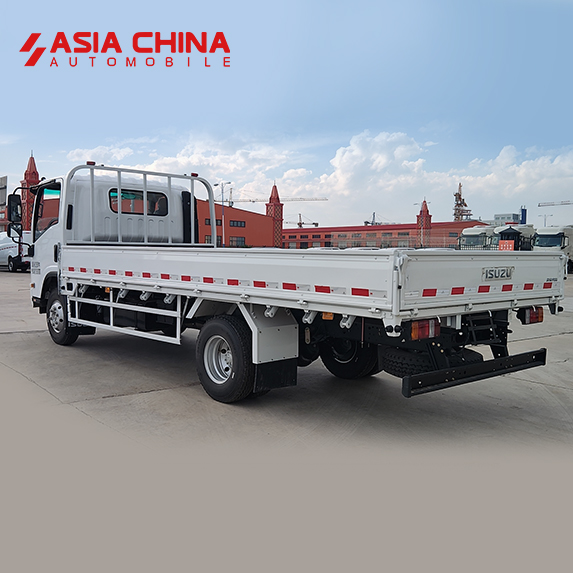

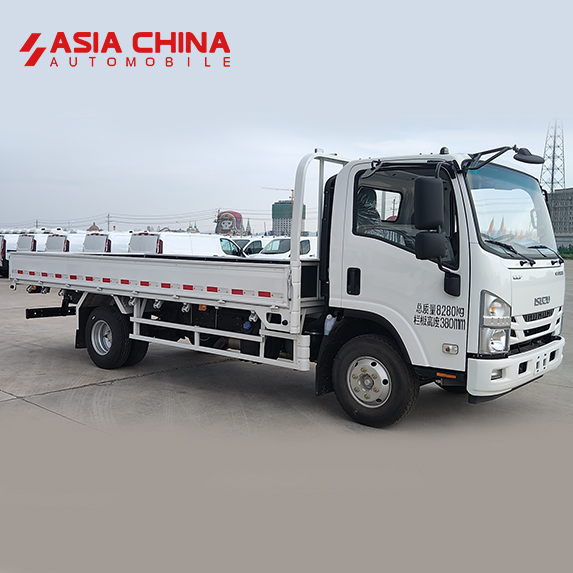

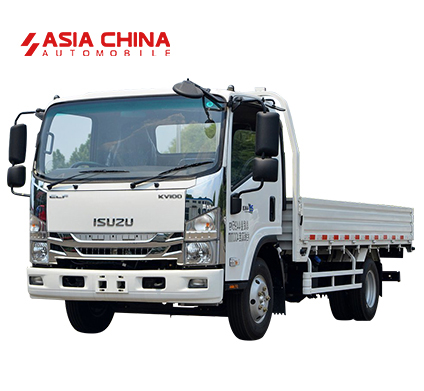

| Qingling Isuzu KV600 Dropside Truck | |||||
| NO. | SPECIFICATION | PARAMETER | |||
| 4×2 | |||||
| 1 | Vehicle Model | QL1043MVHA1 | QL1080BUHA | QL1085MKHA | QL1080BUKA |
| 2 | GVW(kg) | 4495 | 8280 | 8275 | 8280 |
| 3 | Curb Weight(kg) | 2565 | 3110 | 3085 | 3250 |
| 4 | Axle Loads(kg) | 1750/2745 | 3000/5280 | 3000/5275 | 3000/5280 |
| 5 | Cabin | Standard-roof, Left Hand Drive, Single Row with Air Conditioner, 3 Seats | |||
| 6 | Overall Dimension(mm) | 5995×2200×2380 | 5995×2410,2260×2440 | 5995×2410,2260×2440 | 7025×2410,2260×2440 |
| 7 | Wheelbase(mm) | 3360, 3365 | 3365 | 3365 | 3815 |
| 8 | Engine | 4KK1N6HD | 4KH1CN6HB | 4KH1N6HD | 4KH1CN6HB |
| 9 | Engine Output (kW(PS)) | (118kW)160PS | (97kW)132PS | (110kW)150PS | (97kW)132PS |
| 10 | Displacement(L) | 2.499L | 2.999L | 2.999L | 2.999L |
| 11 | Emission Standard | Euro 6 | |||
| 12 | Braking Mode | Air Brake | |||
| 13 | Max Speed(km/h) | 100,115 | 105 | 105 | 105 |
| 14 | Front/Rear Overhang(mm) | 1110/1525,1120/1510 | 1120/1510 | 1120/1510 | 1120/2090 |
| 15 | Tire Model | 7.00R16LT 8PR | 7.50R16LT 14PR | 7.50R16LT 14PR,7.50R16LT 16PR | 7.00R16LT 14PR |
*More parameters can be customised, please contact us for more information.
