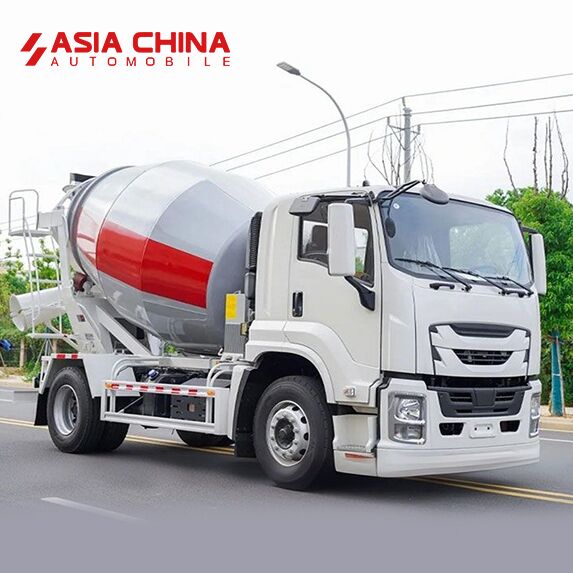

| Isuzu Mixer Truck | |||
| NO. | SPECIFICATION | PARAMETER | |
| 4×2 | |||
| 1 | Model Series | 700P | FTR |
| 2 | Chassis Model | QL1110ANHAY | QL1180JQFRY |
| 3 | Capacity(m³) | 3 | 5 |
| 4 | Vehicle Configuration | Full power take-off | Full power take-off |
| 5 | Anti-lock braking system | √ | √ |
| 6 | Cabin | 3 | 3 |
| 7 | Overall Dimension(mm) | 6600×2210×2950 | 7230×2490×3550 |
| 8 | Wheelbase(mm) | 3360 | 3900 |
| 9 | Engine | 4HK1-TCG61 | 4HK1-TCG60 |
| 10 | Engine Output (kW(PS)) | 139kW(190PS) | 151kW(205PS) |
| 11 | Displacement(L) | 5.193 | 5.193 |
| 12 | Emission Standard | Euro 6 | Euro 6 |
| 13 | Braking Mode | Air Brake | Air Brake |
| 14 | Max Speed(km/h) | 100 | 85 |
| 15 | Front/Rear Overhang(mm) | 1110/1240 | 1335/3045 |
| 16 | Tire Model | 235/75R17.5 16PR | 295/80R22.5 16PR |
| 17 | Upper Structure Configuration | Cylinder material Q355, thickness 4 mm, head material Q355, thickness 5 mm, blade high-strength steel, thickness 3 mm. | |
*More parameters can be customised, please contact us for more information.
