Customizable
Fuel Type: Diesel
Emission Standard: Euro 6
Drive Wheel: 4×2
Engine Power: 190PS

Parameter:

Isuzu Survey Truck
NO. SPECIFICATION PARAMETER
4×2
1 Model Series 700P
2 Vehicle Model                 QL5040XKCCNKAJ
3 GVW(kg)     4495
4 Curb Weight(kg)              4300
5 Axle Loads(kg) 2290/2205
6 Cabin                    3
7 Overall Dimension(mm)      5995×2310,2350×3620,3420,3480,3560
8 Wheelbase(mm)            3815
9 Engine                4HK1-TCG61
10 Engine Output  (kW(PS)) 139kW(190PS)
11 Displacement(L) 5.193
12 Emission Standard Euro 6
13 Braking Mode Air Brake
14 Max Speed(km/h) 124
15 Front/Rear Overhang(mm) 1110/1070
16 Tire Model                     235/75R17.5 16PR,8.25R20 14PR
17 Product Description                   Isuzu survey vehicle is equipped with a telescopic platform, drone system, video surveillance, generator, dehumidifier or heavy-duty UAV, tail lift, and other specialized equipment. Designed for drone launching and recovery operations while moving at low speeds or in a stationary position, it is ideal for traffic accident site investigations, field surveys, and other outdoor missions requiring mobility and real-time monitoring.

*More parameters can be customised, please contact us for more information.

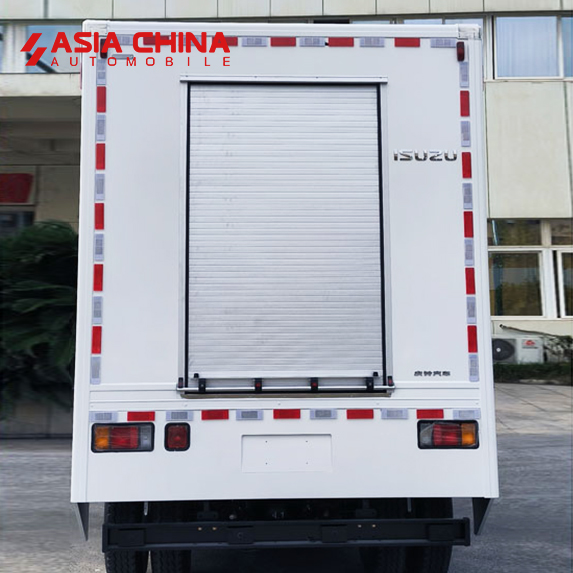

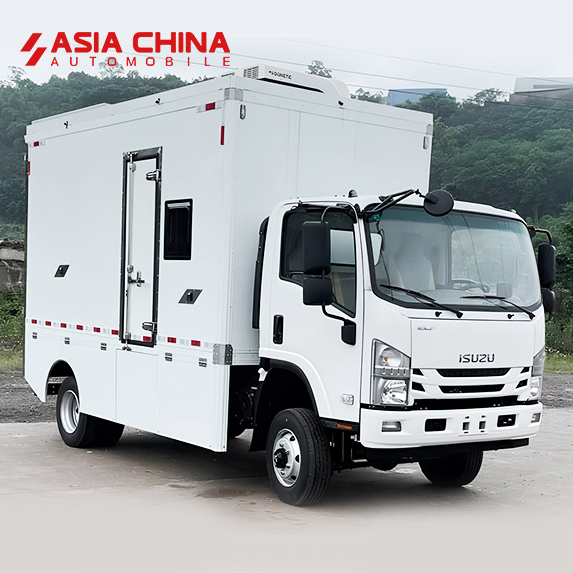

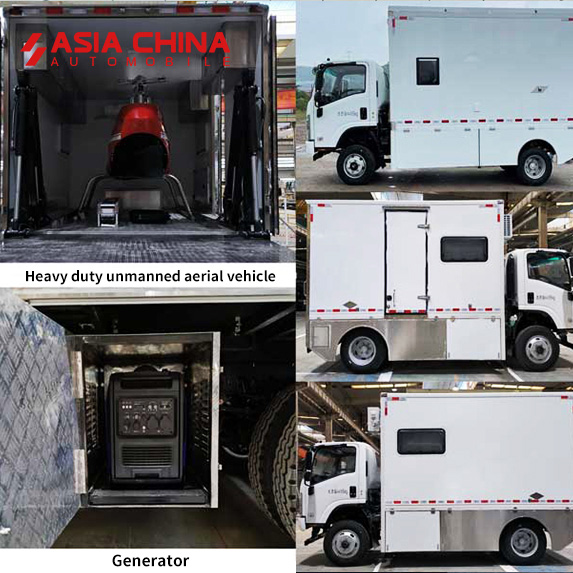

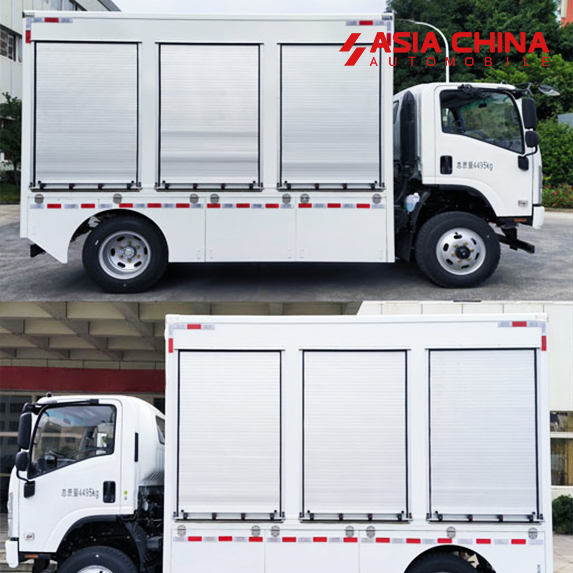

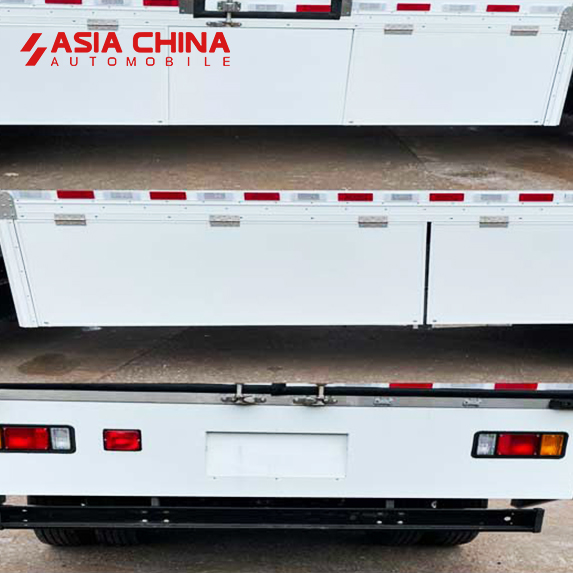

Detail drawing:
